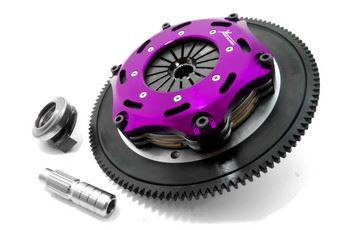

Zestaw sprzęgła Xtreme Motorsport Honda Prelude IV / V - KHN18524-2E
Zestaw sprzęgła Xtreme Motorsport Honda Prelude IV / V - KHN18524-2E
Opis produktu
Zestaw sprzęgła Xtreme Motorsport Honda Prelude IV / V - KHN18524-2E
Numer katalogowy: KHN18524-2E
Pasuje do:
- HONDA PRELUDE IV 2.2 VTi-R (BB1) 1994.02-1997.02 H22A1 2156 Petrol 142 kW 193 BHP
- HONDA PRELUDE IV 2.3 i 16V (BB2) 1992.02-1996.09 H23A2 2259 Petrol 118 kW 160 BHP
- HONDA PRELUDE V 2.2 16V (BB6. BB8) 1996.10-2000.10 H22A5, H22A4, H22A6, H22A8, H22Z1 2156 Petrol 147 kW 200 BHP
- HONDA PRELUDE V 2.2 Si (BB5) 1997.03-2001.04 F22Z6 2156 Petrol 118 kW 160 BHP
- HONDA PRELUDE V 2.2 VTi-R (BB6) 1997.03-1998.10 H22A4 2156 Petrol 142 kW 193 BHP
Specyfikacja:
Średnica tarczy sprzęgła (mm): 184
Średnica wieloklinu sprzęgła (mm): 26
Moment obrotowy (Nm): 1220
Skok koła zamachowego:
Konstrukcja: Twin Plate
Biuletyn techniczny:
Siła docisku:
Rekomendowane do: Motorsport
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
