In a set
2x DBA disc brake 4000 series - T3 rear - DBA4655S-10 SUBARU BRZ Forester Impreza RB320 TOYOTA GT86Price: 224,26 € / pcs
HEL braided brake linesPrice: 65,48 € / pc
You can return the product without providing a reason within 14 days.
Set:
Rear brake discs DBA 4000 series - T3 - DBA4655S-10

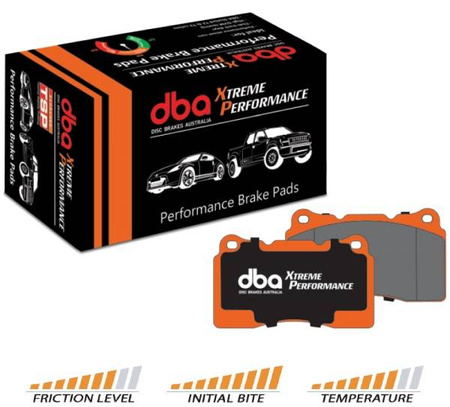

DBA Brake Pads Xtreme Performance ECE R90 certified (Hawk HB180x.560) - DB1521XP
HEL braided brake lines - FREE!
Specification:
Suitable for street riding and occasional track riding
A perfectly matched and comprehensively tested disc and pad combination
DBA discs: Kangaroo Paw - 144 diamond and teardrop-shaped post ventilation system
DBA discs: T3 slots - additional number of degassing outlets allows friction gases to escape freely and improve pad grip
DBA discs: Thermal Stability Profiling (TSP) and increased disc durability under severe braking conditions
DBA brake pads: Semi-metallic carbon fiber friction material
DBA pads: GG friction class (0.45 medium mu from low to high temperatures)
DBA pads: Excellent performance at high temperatures
DBA pads: Optimum braking consistency up to 550℃ (1022℉)
Direct fit, requires no changes to the standard configuration
DBA 4000 series brake disc - T3
Catalog number: DBA4655S-10
Axle: rear
Diameter [mm]: 316
Shield type: Kangaroo Paw
Number of holes: 10
Inner diameter [mm]: 58
Minimum thickness [mm]: 18
Thickness [mm]: 20
Height [mm]: 67.5
Pitch Circle [mm]: 5x100 / 5x114.3
Stage: Stage 4
Weight of 1 piece (kg): 8.16
DBA Brake Pads Xtreme Performance ECE R90 certified (Hawk HB180x.560)
Catalog number: DB1521XP
Axle: rear
Width [mm]: 76.6
Height [mm]: 65.4
Pad thickness [mm]: 13.4
FMSI: 7859-D961
OEM: 26696FE000
ECE R90 Number: E11 R90-02A01584/53179
Weight of 1 piece (kg): 0.98
Over forty years of manufacturing experience and unrivaled expertise through research and development, the DBA brand has established itself as Australia's most successful manufacturer and world leader in brake disc manufacturing.
Thanks to continuous improvement of technology and a desire for innovation, DBA has managed to redefine and provide brake discs for a wide variety of vehicle applications and in a wide range of conditions. When it comes to brake discs, as with all safety components, there can be no shortcuts. Drivers around the world value DBA products for consistency, reliability and excellent performance. DBA guarantees this by engineering disc brakes that are significantly superior to standard and equivalent disc brakes. How? DBA aims to provide high quality, accuracy, the best metals and production equipment that enable the production of the highest quality brake discs.
Brake lines include:
- Teflon cable with steel braid
- Stainless steel tips
- Stainless steel screws (depending on model)
- Copper washers
- Instructions
- Lifetime warranty
HEL Performance cables are available in 13 different colors:
| Wire core: | PTFE |
| Outer cable sheathing: | Stainless steel 303/304 and plastic cover embedded in the braid |
| Tip material: | Stainless steel 303/304 |
| Working Temperature: | from -70°C to 260°C |
| Inner Diameter: | 3.5mm |
| Outer Diameter: | 7.5mm |
| Maximum working pressure: | 290 Bar (4206 PSI) |
| Bursting pressure: | 870 Bar (12618 PSI |
| Minimum bending radius: | 38mm |
The set includes: 2x discs + pads + HEL cables
The set fits:
- TOYOTA\GT86\2.0 TRD 200BHP (2018-) Brake Pads: DB1521 Brake Caliper: Brembo
- Subaru\BRZ\2.0 tS 200BHP (2013-) Brake Pads: DB1521 Brake Caliper: Brembo
- Subaru\ Impreza\2.0 Turbo WRX STi 100 pcd (2002-2005) Brake Pads: DB1521 Brake Caliper: Brembo
- Subaru\ Impreza\2.0 Turbo WRX STi 114 pcd (2005-2006) Brake Pads: DB1521 Brake Caliper: Brembo
- Subaru\ Impreza RB320\2.5 Turbo (2006-2007) Brake Pads: DB1521 Brake Caliper: Brembo
- Subaru\ Forester\2.5 Turbo STi 320BHP (2004-2008) Brake Pads: DB1521 Brake Caliper: Brembo
- Subaru\ Impreza\2.5 Turbo WRX STi (2006-2007) Brake Pads: DB1521 Brake Caliper: Brembo
| Diameter: | 316 mm |
