Thermal imaging camera ECUMASTER

Ecumaster Camera

Thermal imaging cameras provide precise and non-contact real-time temperature readings. The measured data is sent via Can Bus and can be recorded and displayed by other devices (e.g. ADU). User-configurable sensors take a precise reading (less than 3°C error) at up to 16 points per tire from 0° to 255°C (Tyre Temperature Sensor) or up to 950°C (brake disc version). All data is transmitted at up to 50Hz over a flexible user-configurable CAN stream, allowing the sensors to connect to any data system. It is worth mentioning that the fully available configuration of the CAN stream allows the use of many sensors in one car without the risk of collision of message identifiers.

TECHNOLOGY

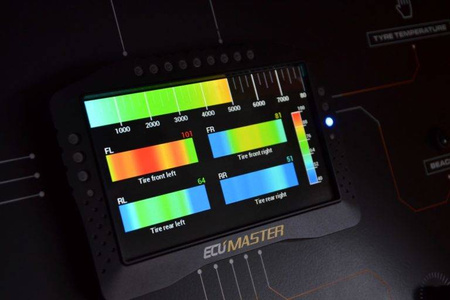

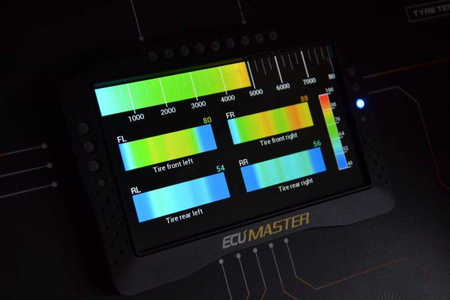

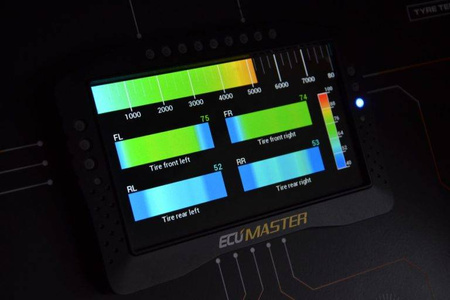

The Ecumaster CAN infrared tire thermal imager is a valuable addition to any racing car. Each camera provides temperature readings for 16 points across the entire tire and transmits this information over the CAN bus. The ADU dashboard display can display the real-time thermal model of the tire, showing the temperature gradient across the tire.

SPECIFICATION:

> GENERAL:

Supply operating voltage:

- 6-22V, overvoltage resistance according to ISO 7637

Reverse polarity protection:

- Yes, internal to 16V

Waterproof:

- IP67, custom made

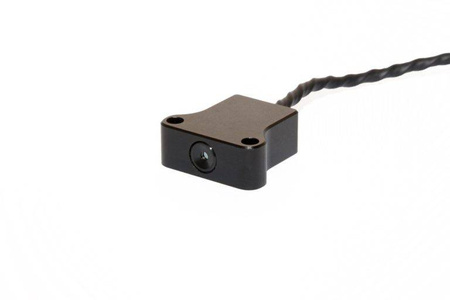

CNC machined aluminum

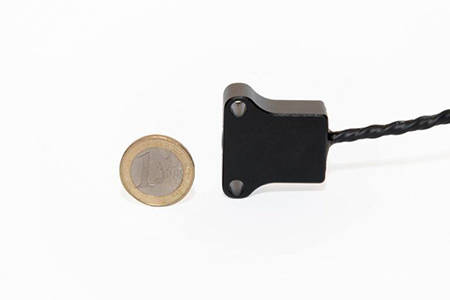

Size and Weight:

- 40x34x13mm 46g

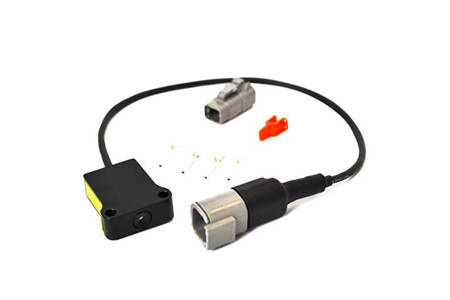

Connector:

- Deutsch DTM04-4P

CAN bus baud rate:

- 1Mbps

- 500 kbps

- 250 kbps

- 125 kbps

Communication with the computer:

USB to CAN (Ecumaster USBtoCAN, PEAK, Kvaser)

>TEMPERATURE

Number of measuring points:

- 16

Temperature range:

- 0 - 255°C

Field of view:

- 125° x 25° (horizontal x vertical)
