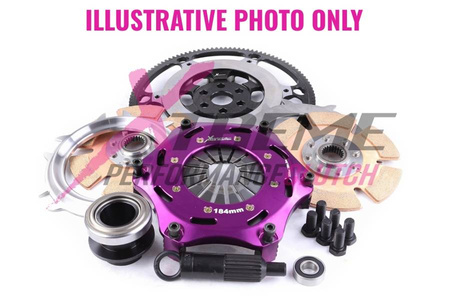

Xtreme Performance Toyota Corolla / Lotus Elise - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm
Xtreme Performance Toyota Corolla / Lotus Elise - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm
Opis produktu
Xtreme Motorsport Toyota Corolla / Lotus Elise - KTY18521-2E
Index: KTY18521-2E
Fits:
- TOYOTA COROLLA 1.8 VVTi (ZZE122_) 2001.01-2007.12 1ZZ-FE 1794 Petrol 100 kW 136 BHP
- TOYOTA COROLLA sedan 1.8 (ZZE122) 2001.11-2006.10 1ZZ-FE 1794 Petrol 100 kW 136 BHP
- TOYOTA COROLLA Verso 1.8 (ZNR11_) 2004.04-2009.03 1ZZ-FE 1794 Petrol 95 kW 129 BHP
- TOYOTA COROLLA Wagon 1.8 (ZZE122) 2001.12-2007.12 1ZZ-FE 1794 Petrol 100 kW 136 BHP
- TOYOTA COROLLA Wagon 1.8 (ZZE122_) 2005.10-2007.12 1ZZ-FE 1794 Petrol 93 kW 126 BHP
- LOTUS ELISE 1.8 2007-2011 1ZZ-FE 1796 Petrol
Specs:
Clutch Disc Diameter (mm): 184
Clutch Disc Spline Diameter (mm): 23.8
Torque (Nm): 1220
Flywheel Step: +2.5mm
Design: Twin Plate
Tech Bulletins:
Clamp Load:
Recommended for: Motorsport
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
