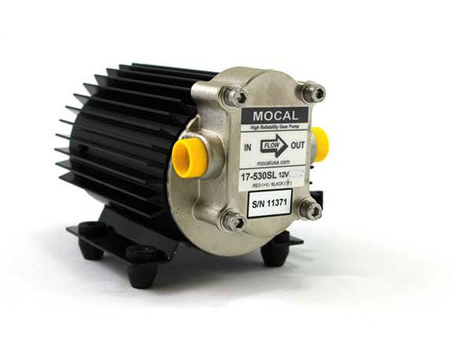

Heavy Duty Mocal Oil Pump
Electric Gear Oil Pump Heavy Duty Mocal TDP1.
Designed from the ground up to work in the toughest conditions, designed for motor racing.
Ideally suited for engine oil systems, gearboxes, differentials, turbocharger oil systems, also engines equipped with two turbochargers.
The pump is self-priming and can be placed anywhere.
Technical data:
- 3.6L - 11L / min. at 3.4 bar max.
- maximum operating temperature 175 ° C
- quiet work
- low vibration level
- motor bearings and brushes with a lifetime of 10,000 hours
- hardened gear rotors
- black anodized aluminum heat sink
- nickel-plated pump head
- stainless steel fittings
- 3/8 NPT inlet / outlet - internal wiring resistant to high temperature
- insulated rubber handle and feet
- weight 2.8 kg
- voltage of 12 V, 5-12 amp nominal (amperage differs from pressure and fluid viscosity)
The direction of flow is marked on the ports.
The 24 V version is only available by special order. The lead time is 1-4 weeks.
A prefilter must be used upstream of the pump! Any damage caused by contamination will not be covered by the warranty.
