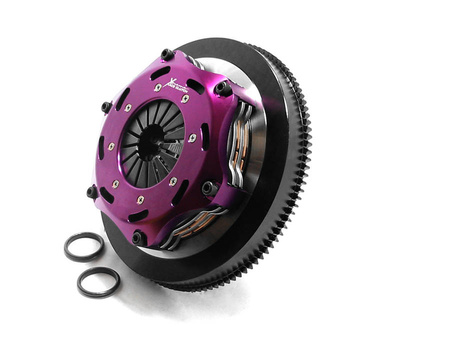

Xtreme Performance BMW 3 / 5 / Z Series - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

Xtreme Motorsport BMW 3 / 5 / Z Series - KBM18530-2E

Index: KBM18530-2E

Fits:

Specs:
Clutch Disc Diameter (mm): 184

Clamp Load: 900Kg

Recommended for: Motorsport

Xtreme Motorsport 184mm twin plate

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:

• Push type billet alloy cover
• 4140 Chromoly pressure plate
• Hardened steel wear posts
• High and low ratio pressure plate options
• Low inertia
• Serviceable components
• SFI certified design

Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm)	185-10B-PP-L
Heavy Diaphragm Alloy Hat Assembly (2.8mm)	185-10B-PP
Pressure Plate Casting	185-10B-PPC
Intermediate Plate	185-10B-IP
Pressure Plate Bolt	BOLT-8X1.125X50
Pressure Plate Washer	WASHER-8MM-C

	Ø184mm Light Diaphragm (2.6mm)	Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force	950kg	1080kg
Torque Rating	1060Nm	1210Nm
Bearing Contact Diameter	44-52mm
Bearing Load (@ 48mm)	210kg	260kg
Release Travel Required	5mm
Assembly Mass (without flywheel)	4.45kg
Disc Set Static Mass	1.1kg
Friction Thickness New	6.35mm (0.250")
Friction Thickness Worn	5.97mm (0.235")
