Xtreme Motorsport lendkerék BMW E46 / E60 / X3 (E83) / X5 (E53) - KBM23554-2E
Xtreme Motorsport lendkerék BMW E46 / E60 / X3 (E83) / X5 (E53) - KBM23554-2E
Termékleírás
Xtreme Motorsport lendkerék BMW E46 / E60 / X3 (E83) / X5 (E53) - KBM23554-2E
Katalógusszám: KBM23554-2E
Illeszkedik:
- BMW 3-Series 330 i E46 2000-2005 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW 3-Series 330 i E46 2001-2005 2979cc | 168KW | 228HP | M54 B30 (306S3)
- BMW 3-Series 330 xi E46 2000-2005 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW 3-Series 330 xi E46 2000-2006 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW 5-Series 520 i E60 2003-2010 2171cc | 125KW | 170HP | M54 B22 (226S1)
- BMW 5-Series 525 i E60 2003-2005 2494cc | 141KW | 192HP | M54 B25 (256S5)
- BMW 5-Series 525 i E61 2004-2010 2494cc | 141KW | 192HP | M54 B25 (256S5)
- BMW 5-Series 530 i E60 2001-2005 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW X3 3.0 i xDrive E83 2003-2006 2979cc | 170KW | 231HP | M54 B30 (306S3)
- BMW X5 3.0 i E53 2000-2006 2979cc | 170KW | 231HP | M54 B30 (306S3)
Specifikáció:
Kuplungtárcsa átmérője (mm): 230
A tengelykapcsoló poligon átmérője (mm): 29
Nyomaték (Nm): 1830
Lendkerék löket:+3.8mm
Tervezés:Twin Plate
Biuletyn techniczny:
Nyomóerő:
Ajánlott: Motorsport

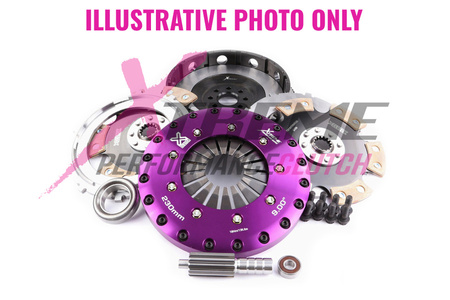

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
